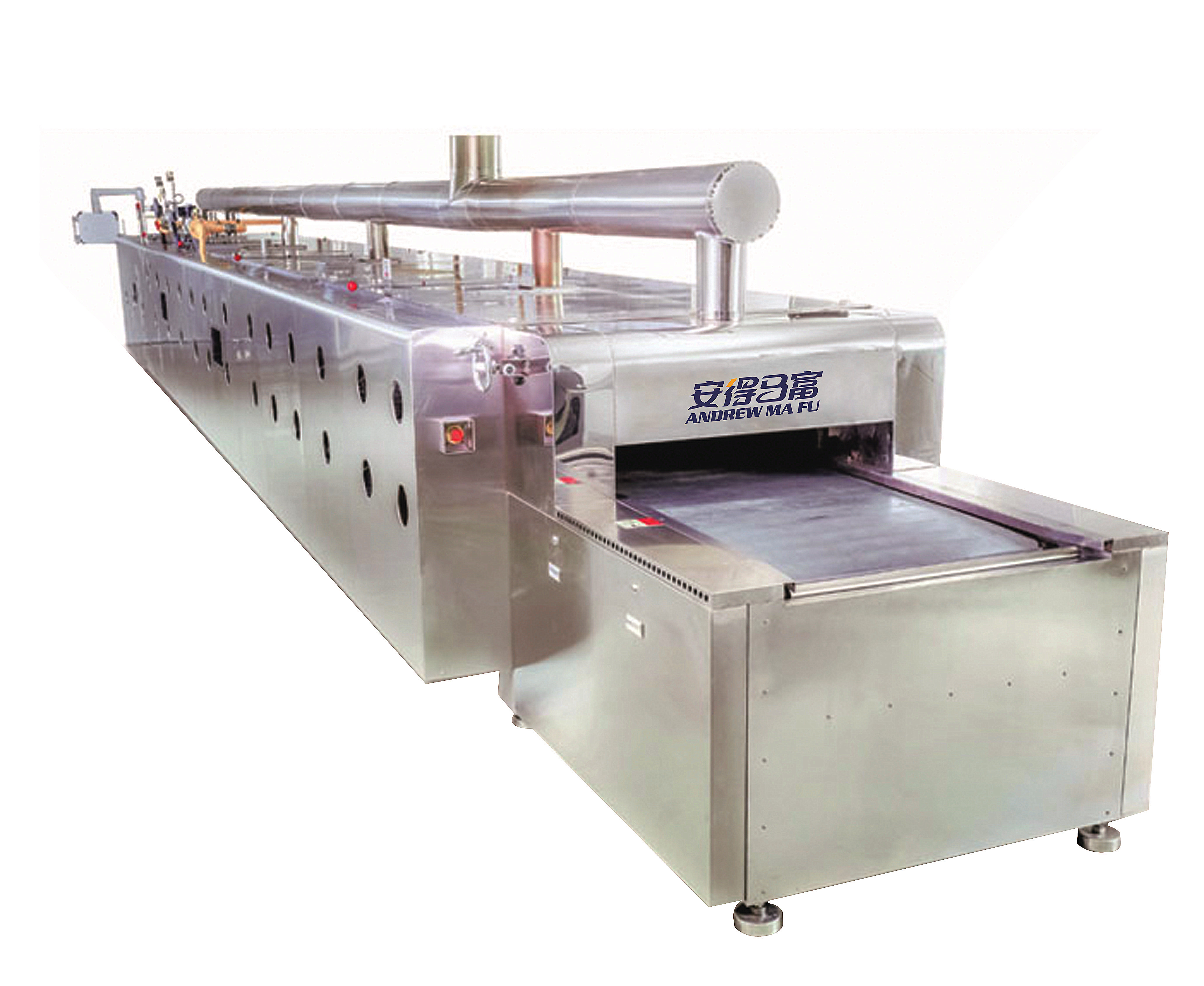

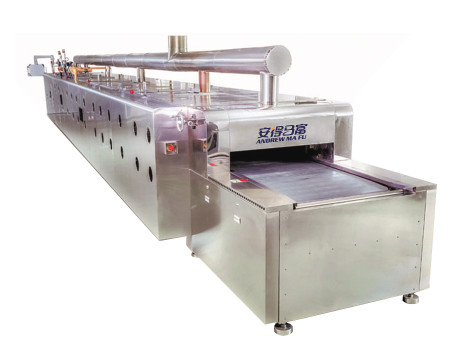

鋼帶式隧道烤爐 Steelbelt based tunnel oven
價格: | 價格面議 |
---|
![]() |
產品介紹
鋼帶式隧道烤爐
Steelbelt based tunnel oven
隧道爐分為5個加熱區域的溫度和生產流水線的速度,其中溫度采用熱電偶測量,設有冷端溫度自動補償、熱電偶線性化處理和數字濾波功能;可顯示各點的設定和實際溫度的數值;可在線設置或修改各點的溫度設定值;具有超限和熱電偶斷偶聲光報警功能,并可在線設置或修改各點的溫度的上、下限報警值;可在線選擇雙??刂苹蚰:齈ID控制或其它先進控制算法,且具有輸出限幅和防積分飽和功能,以改善系統的動態調節品質,控制參數可在線設置或修改,以達到合適的控制效果;系統采用德國西]子可編程控制器、輸出通道采用光電耦合器進行隔離,輸出信號采用產生諧波干擾很小的控制點火管的周波數的辦法,使系統具有很強的抗干擾能力;此外具有投入少、人機界面直觀、操作方便等特點。
The tunnel furnace is divided into 5 heating areas for temperature and production line speed. The temperature is measured by thermocouple and equipped with cold end temperature automatic compensation, thermocouple linearization and digital filtering functions.Display the value of setting and actual temperature of each point;The temperature setting value of each point can be set or modified online;It has the function of sound and light alarm for over-limit and thermocouple breaking, and can set or modify the upper and lower alarm values of temperature of each point online;Dual mode control or fuzzy PID control or other advanced control algorithms can be selected online, with output limiting and anti-integral saturation function, to improve the dynamic adjustment quality of the system, control parameters can be set or modified online, to achieve the best control effect;The system adopts the west gate sub-programmable controller, the output channel adopts the photoelectric coupler for isolation, and the output signal USES the method of controlling the cycle number of the ignition tube with little harmonic interference, so that the system has a strong anti-interference ability.In addition, it has the characteristics of low input and easy operation.
1新型合金帶狀燃燒器,具有變形小,耐溫性能高,耐腐蝕性強,調節比大及靜音燃燒等特點??墒归L期適用的設備,具有極強的穩定性,確保產品受熱均勻及顏色-致性,長期使用也不會發生變化。
2熱流循環裝置,使爐瞠內形成熱氣對流循環運行,保證產品腰部受熱充分,色澤光亮。
3多元式排氣系統可靈活控制更加合理的產品水分要求。
4預熱加熱,可使燃燒更加強烈與充分,保證燃燒熱完全不留廢棄,具有明顯的節能效果
Baking range: all kinds of sandwiches, Swiss rolls, thousand layer cakes, cookies, cakes, cakes, shortcake, etc 烘烤范圍:適用各種面包,蛋糕和傳統中式糕等的烘烤優勢:
Baking advantage:1,The new type alloy belt burner has the characteristics of small deformation, high temperature resistance, strong corrosion resistance, large adjustment ratio and silent combustion.Can make long-term application of equipment, with strong stability, ensure that the product is heated evenly and color consistency, long-term use will not change;2,Multiple exhaust system can flexibly control more reasonable moisture requirements of products;3,Preheating heating, can make the combustion more intense and full, ensure that the combustion heat does not waste, has obvious energy saving effect.
